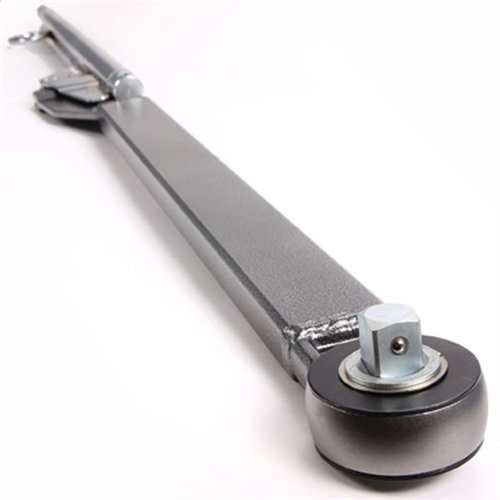

The Industrial Range of Torque Wrenches has a 'Break Back' action providing

an unmistakable signal that can be seen and felt when the set torque is

reached.

Part number: 12012.01

EAN Bar Code: 5060207560467

NATO number: -

Accuracy: ±4%

Operates between:

500.00 - 1000.00 lbf·ft

700.00 - 1500.00 N·m

TECHNICAL SPECIFICATIONS

Square Size: 1

Torque Radius: 1272.4 mm

Ratchet Teeth: 36

Ratchet Type: push-through

FEATURES

Robust construction gives accurate results, ±4%, even in arduous working conditions.

The break angle improves accuracy by reducing the possibility of over torquing.

Dual scaled, N·m and lbf·ft.

All models are also available as Production 'P' types with no setting scale. These must be set against a torque testing device such as

Norbar’s Professional Torque Tester.

Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017
