The NorTorque® utilises Norbar's proven mechanism and internal
components and incorporates them into a purposeful and attractive torque
wrench
In developing NorTorque®, Norbar's objective was to deliver outstanding quality
and performance in a value for money package. Fine engineering ensures that
the wrench adjustment is both fast and fingertip light meaning that you can do
your job more efficiently.
Supplied with a Declaration of Conformance which meets the requirements
ISO 6789-1:2017
Accurate to ±3% of reading with models available to cover 12 N·m to 340 N·m.
Part number: 130106
EAN Bar Code: 5060207565387
NATO number: 5120-99-6908519
Accuracy: ±3%
Operates between:
60.00 - 340.00 N·m
45.00 - 250.00 lbf·ft
Product Specification
25/01/2025

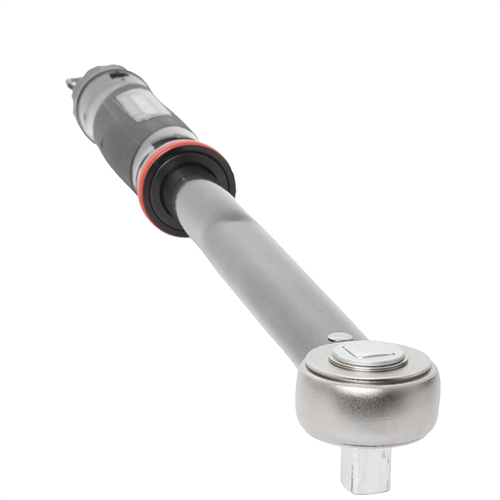

NorTorque model 340, 1/2, Adjustable Ratchet (Dual Scale)
TECHNICAL SPECIFICATIONS
Length: 679mm
Weight: 1.55kg
Ratchet Teeth: 60
Square Drive: 1/2
Ratchet Diameter: 52mm
Scale Increments (N·m): 2
Scale Increments (lbf·ft): 10
FEATURES
Convenient hanger feature for tool storage also aids wrench unlocking and adjustment
Just eight turns to cover the entire scale
Micrometer scale applying to the primary torque units (N·m on a dual scale wrench) for simple and error free setting
Push/pull lock is fast and intuitive to use and prevents accidental adjustment of the set torque
Light and fast adjustment saves operator time and effort
Push through ratchets with a narrow engagement angle of 6° for working in tight space
Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017
