The NorTorque® utilises Norbar's proven mechanism and internal

components and incorporates them into a purposeful and attractive torque

wrench

In developing NorTorque®, Norbar's objective was to deliver outstanding quality

and performance in a value for money package. Fine engineering ensures that

the wrench adjustment is both fast and fingertip light meaning that you can do

your job more efficiently.

Supplied with a Declaration of Conformance which meets the requirements

ISO 6789-1:2017

Accurate to ±3% of reading with models available to cover 12 N·m to 300 N·m.

Part number: 130103

EAN Bar Code: 5060207565356

NATO number: 5120-99-8434984

Accuracy: ±3%

Operates between:

20.00 - 100.00 N·m

20.00 - 80.00 lbf·ft

TECHNICAL SPECIFICATIONS

Length: 375mm

Weight: 0.8kg

Ratchet Teeth: 72

Square Drive: 1/2

Ratchet Diameter: 42mm

Supplied with a 3/8 sq. dr. adaptor

Scale Increments (N·m): 1

Scale Increments (lbf·ft): 2

FEATURES

Push through ratchets with a narrow engagement angle of 5° for working in tight spaces

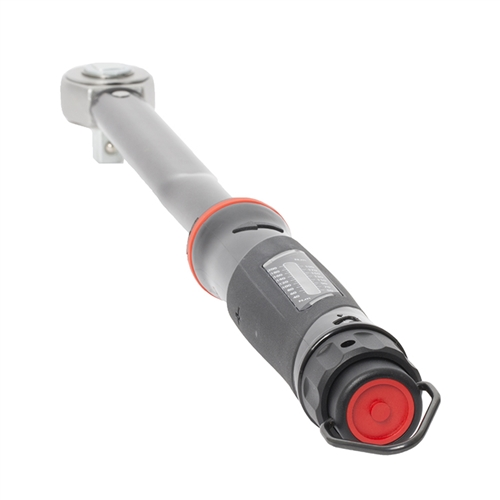

Convenient hanger feature for tool storage also aids wrench unlocking and adjustment

Just eight turns to cover the entire scale

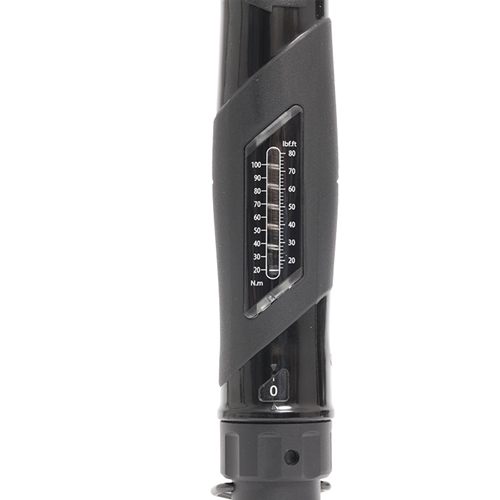

Micrometer scale applying to the primary torque units (N·m on a dual scale wrench) for simple and error free setting

Push/pull lock is fast and intuitive to use and prevents accidental adjustment of the set torque

Light and fast adjustment saves operator time and effort

Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017
